Dolmar / Makita DPC6400 Parts List

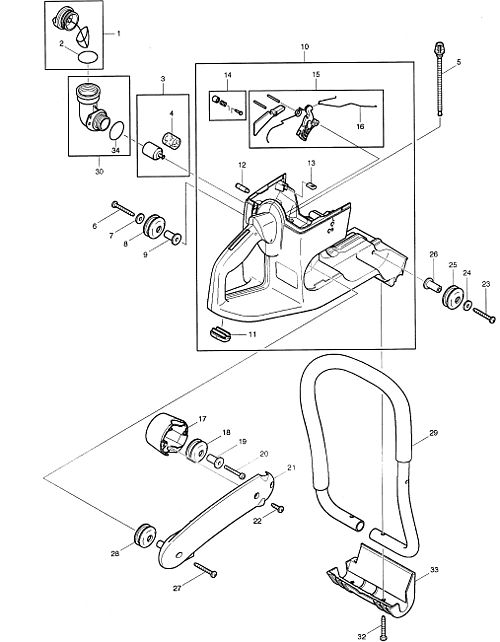

Tank and Handle Grip
Drawing Number	O.E.M. Part No	Quantity	Description
1	010 114 091	1	Tank Plug Coupling (Inc 2)
2	963 230 031	1	'O' Ring
3	963 601 130	1	Suction Head Coupling
4	963 601 240	1	Felt
5	965 404 911	1	Fuel Line
6	913 455 454	1	Torx Screw M5.5x45
7	924 405 500	1	Washer
8	965 403 532	1	Rubber Buffer
9	394 114 031	1	Axle
10	394 114 601	1	Tank Coupling (Inc 11 - 15)
11	394 114 070	1	Rubber Foot
12	010 175 050	1	Air Vent Valve
13	394 114 100	4	Screw Plug
14	957 117 030	1	Half-Throttle Lock Coupling
15	957 117 020	1	Throttle Mechanism Coupling (Inc 16)
16	394 117 011	1	Throttle Linkage
17	394 114 050	1	Pot
18	965 403 532	1	Rubber Buffer
19	394 114 031	1	Axle
20	908 305 405	1	Torx Screw M5x4
21	394 114 640	1	Bracket
22	913 455 204	2	Torx Screw M5.5x20
23	913 455 454	1	Torx Screw M5.5x45
24	924 405 500	1	Washer
25	965 403 532	1	Rubber Buffer
26	394 114 031	1	Axle
27	913 455 454	1	Torx Screw M5.5x45
28	965 403 532	1	Rubber Buffer
29	394 310 100	1	Wrap-Around Handle
32	913 455 454	2	Torx Screw M5.5x45
33	394 114 060	1	Foot
34	963 230 031	1	'O' Ring

UK Part Numbers listed ONLY
Return to Top of Page

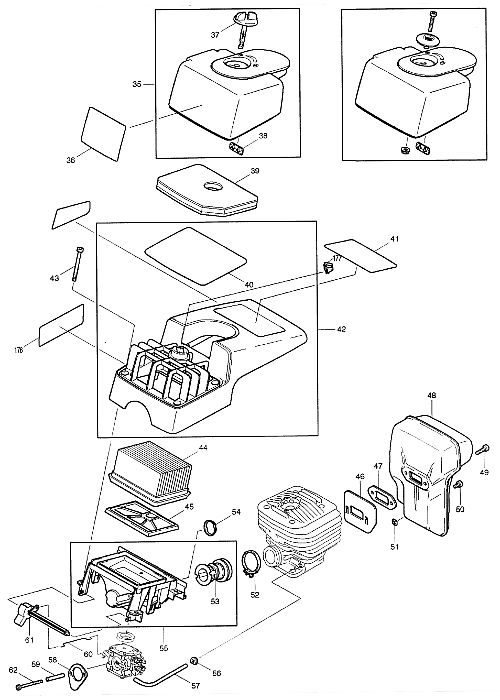

Filter Cover Assembly
Drawing Number	O.E.M. Part No	Quantity	Description
35	394 118 110	1	Filter Cover Assembly (Includes 37 and 38)
36	980 114 611	1	Safety Label
37	908 005 305	1	Torx Screw M5x30
38	394 118 060	1	Insert
39	394 173 030	1	Prefilter
40	394 118 020	1	Packing Ring
41	980 114 793	1	Label - DPC6400
42	394 118 080	1	Hood Complete (Includes 40 and 171)
43	908 505 555	4	Torx Screw M5
44	394 173 010	1	Air Filter
45	394 173 020	1	Inner Filter
46	394 173 050	1	Cover Plate
47	965 531 130	1	Gasket
48	394 174 010	1	Muffler
49	908 405 205	2	Torx Screw M5
50	908 005 095	2	Torx Screw M5
51	921 905 004	1	Square Nut
52	965 603 050	1	Clamp
53	394 131 100	1	Suction Line
54	024 131 031	1	Insert for Suction Hose
55	394 171 050	1	Connecting Sleeve Complete (Inc 53)
56	965 401 016	1	Rubber Bush
57	965 452 380	1	Fuel Ventilation Line
58	965 518 120	1	Gasket
59	970 502 050	1	Insulating Hose
60	394 150 042	1	Choke Shaft (New)
61	394 150 030	1	Choke Shaft
62	908 204 555	2	Torx Screw M4

UK Part Numbers listed ONLY
Return to Top of Page

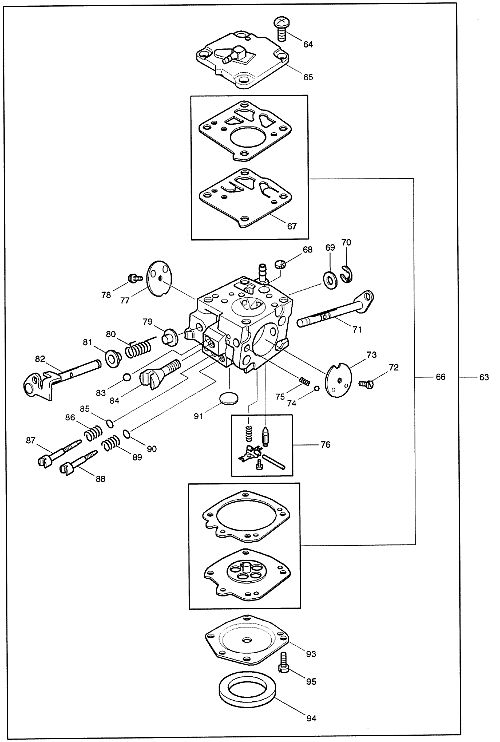

Carburettor
Drawing Number	O.E.M. Part No	Quantity	Description
63	394 150 050	1	Carburettor Complete (Inc 64 - 95)
64	394 150 170	4	Torx Head Screw
65	394 150 160	1	Pump Cover Coupling
66	957 150 100	1	Diaphragm / Gasket Set (inc 67)
67	113 150 150	1	Pump Diaphragm - Rubber
68	394 150 180	1	Screen
69	122 151 400	1	Disc
70	100 150 350	1	Safety Clip
71	394 150 250	1	Choke Shaft
72	001 150 650	1	Screw
73	113 150 261	1	Choke Shutter
74	113 150 380	1	Locking Ball
75	101 150 080	1	Locking Spring
76	957 150 160	1	Set of Control Parts
77	144 151 320	1	Throttle Shutter
78	001 150 650	1	Screw
79	144 151 315	1	Bushing
80	394 150 310	1	Spring
81	144 151 315	1	Bushing
82	394 150 300	1	Throttle Shaft
83	001 150 510	1	Friction Ball
84	394 150 570	1	Idle Stop Screw
85	394 150 500	1	'O' Ring
86	144 151 480	1	Spring (L)
87	394 150 470	1	Idle Adjustment Screw
88	394 150 510	1	Main Adjustment Screw
89	144 151 480	1	Spring (L)
90	394 150 500	1	'O' Ring
91	113 150 040	1	Cover Disc 9mm
93	394 150 120	1	Diaphragm Cover
94	965 402 970	1	Gasket
95	001 150 520	4	Screw

UK Part Numbers listed ONLY
Return to Top of Page

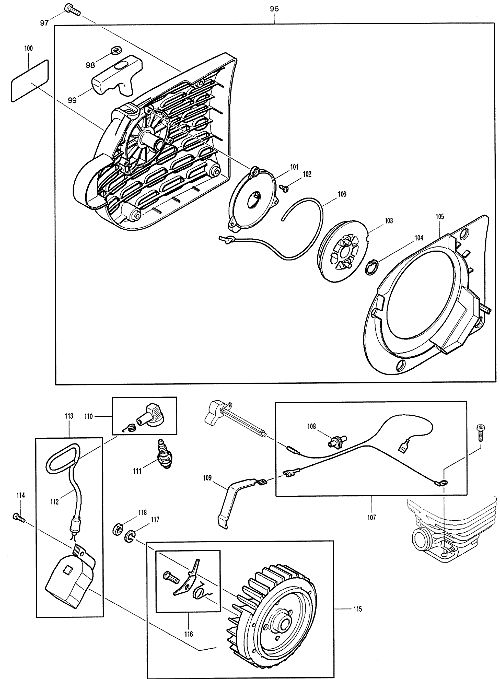

Starter Assembly
Drawing Number	O.E.M. Part No	Quantity	Description
96	394 112 640	1	Starter Assembly (Includes 98, 99 and 101 - 105)
97	908 005 165	4	Torx Screw M5x16
98	928 405 000	1	Spring Washer
99	001 161 010	1	Starter Grip
100	980 114 217	1	Label
101	394 163 020	1	Rewind Spring
102	915 135 100	2	Torx Head Screw
103	394 162 010	1	Cable Drum
104	929 314 100	1	Snap Ring
105	394 112 140	1	Air Guide Plate
106	**---**	1	Not Used
107	965 605 433	1	Cable with Plug (Inc 108)
108	965 401 016	1	Rubber Bush
109	394 146 011	1	Contact Spring
110	957 604 240	1	Spark Plug Cap Complete
111	965 603 021	1	Spark Plug - WSR61
112	970 310 200	1	Ignition Cable
113	394 143 011	1	Ignition Coil
114	908 605 205	2	Torx Head Screw
115	394 141 030	1	Flywheel Assembly Complete (inc 116)
116	311 660 10	2	Starter Ratchet (Set)
117	926 208 001	1	Spring Washer
118	920 208 024	1	Hexagonal Nut

UK Part Numbers listed ONLY
Return to Top of Page

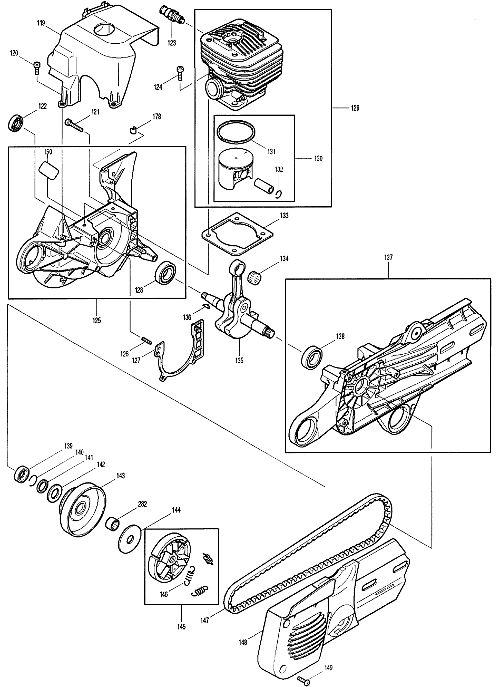

Cylinder and Piston, Crankshaft Clutch Assembly
Drawing Number	O.E.M. Part No	Quantity	Description
119	394 131 040	1	Hood
120	908 005 165	3	Torx Screw M5x16
121	908 005 305	5	Torx Screw M5x30
122	962 900 052	1	Radial Ring
123	001 131 050	1	Decom. Valve
124	908 005 205	4	Torx Screw M5x20
125	394 111 111	1	Crank Case Mag Side grey (Inc 128)
126	936 430 160	2	Spiral Pin 3x16
127	965 531 110	1	Gasket
128	960 102 159	1	Ball Bearing
129	325 130 030	1	Cylinder and Piston Complete (Inc 130)
130	325 132 030	1	Piston Coupling (Includes 131 and 132)
131	325 132 050	1	Piston Ring
132	119 132 060	2	Spring Ring 12x1
133	965 531 120	1	Gasket
134	962 210 015	1	Needle Cage
135	394 120 010	1	Crankshaft Coupling
136	939 630 370	1	Key 3.0x3.7
137	394 111 120	1	Crank Case Clutch Side (Inc 138)
138	960 102 159	1	Ball Bearing
139	962 290 052	1	Radial Ring
140	930 916 610	1	Spring Ring
141	394 245 010	1	Stop Ring
142	394 182 020	1	Guide Disc
143	394 223 022	1	Clutch Drum Assembly
144	024 182 060	1	Guide Disc
145	010 180 021	1	Clutch Assembly
146	024 184 021	3	Tension Spring
147	965 300 470	1	V-Belt
148	394 213 040	1	Cover - Grey
149	908 605 145	3	Torx Head Screw
150	980 600 130	1	Insulating Sheet
282	962 300 016	1	Needle Cage

UK Part Numbers listed ONLY
Return to Top of Page

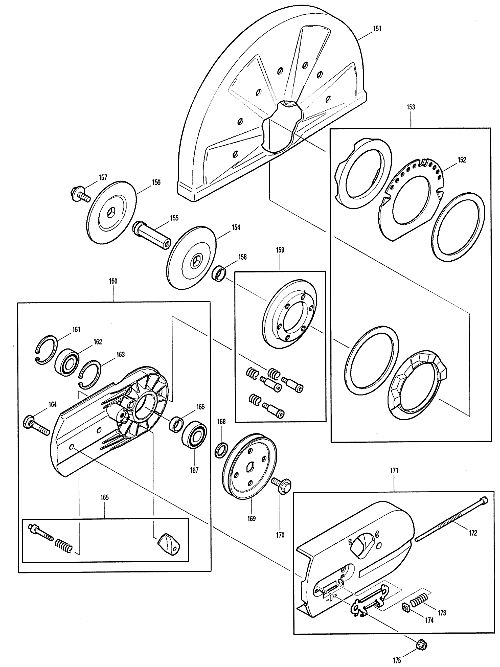

Guard
Drawing Number	O.E.M. Part No	Quantity	Description
151	325 341 610	1	Protection Hood
152	394 342 011	1	Locking Plate
153	957 342 011	1	Protection Hood Mounting Coupling (Inc 152)
154	394 228 061	1	Pressure Disc
155	**---**	1	Not Used
156	394 228 061	1	Pressure Disc
157	994 280 250	1	Hex Head Screw M8x25
158	394 228 020	1	Spacer
159	394 342 201	1	Pressure Ring Coupling - Grey
160	394 211 110	1	Cutting Device Assembly (Inc 161 - 167)
161	929 240 180	1	Snap Ring
162	960 102 176	1	Ball Bearing
163	929 240 180	1	Snap Ring
164	394 211 090	2	Screw
165	957 211 020	1	Bolt
166	394 228 020	1	Spacer
167	960 102 176	1	Ball Bearing
168	900 006 179	1	Disc
169	394 221 010	1	V-Belt Pulley
170	994 280 250	1	Hex Head Screw M8x25
171	394 211 100	1	Cover Complete (Inc 172 - 174)
172	394 213 031	1	Tensioning Screw
173	394 342 120	1	Pressure Spring
174	921 906 004	1	Nut
175	923 208 004	2	Hex Nut M8
176	980 114 700	1	Label
177	394 118 050	1	Bayonet Lock
178	965 402 870	1	Rubber Plate

UK Part Numbers listed ONLY
