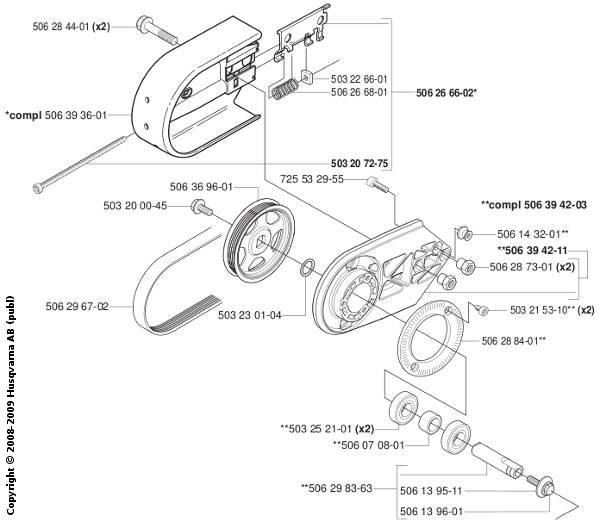

| Front Bearing Housing and Belt | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 503 20 00-45 | 1 | Screw |
| 503 20 72-75 | 1 | Screw |
| 503 21 53-10 | 2 | Screw |
| 503 22 66-01 | 1 | Nut |
| 503 23 01-04 | 1 | Washer |
| 503 25 21-01 | 2 | Ball Bearing |
| 506 07 08-01 | 1 | Washer |
| 506 13 95-11 | 1 | Washer |
| 506 13 96-01 | 1 | Screw |
| 506 14 32-01 | 1 | Catch |
| 506 26 66-02 | 1 | Tensioner |
| 506 26 68-01 | 1 | Spring |
| 506 28 44-01 | 2 | Bolt |
| 506 28 73-01 | 2 | Nut |
| 506 28 84-01 | 2 | Flange |
| 506 29 67-02 | 1 | Belt |
| 506 29 83-63 | 1 | Shaft |
| 506 36 96-01 | 1 | Pulley |
| 506 39 36-01 | 1 | Protector |
| 506 39 83-01 | 1 | Housing |
| 725 53 29-55 | 1 | Screw |
Return to Top of Page

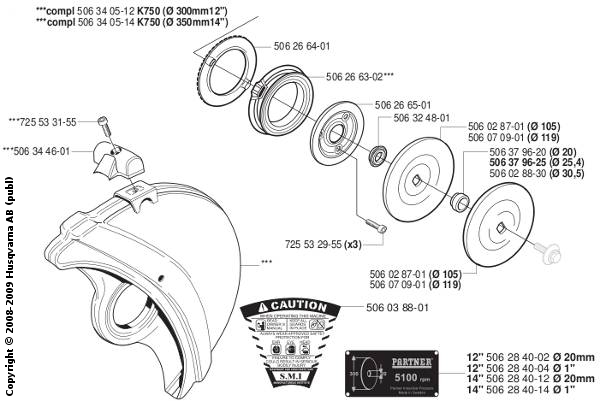

| Blade Guard and Front Pulley | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 506 02 87-01 | 1 | Washer |
| 506 02 88-30 | 1 | Bushing |
| 506 03 88-01 | 1 | Warning Label |
| 506 07 09-01 | 1 | Washer |
| 506 26 63-02 | 1 | Loning |
| 506 26 64-01 | 1 | Flange |
| 506 26 65-01 | 1 | Flange |
| 506 28 40-02 | 1 | Label |
| 506 28 40-04 | 1 | Label |
| 506 28 40-12 | 1 | Label |
| 506 28 40-14 | 1 | Label |
| 506 32 48-01 | 1 | Flange |
| 506 34 05-12 | 1 | Protector |
| 506 34 05-14 | 1 | Protector |
| 506 34 46-01 | 1 | Handle |
| 506 37 96-20 | 1 | Bushing |
| 506 37 96-25 | 1 | Bushing |
| 725 53 29-55 | 3 | Screw |
Return to Top of Page

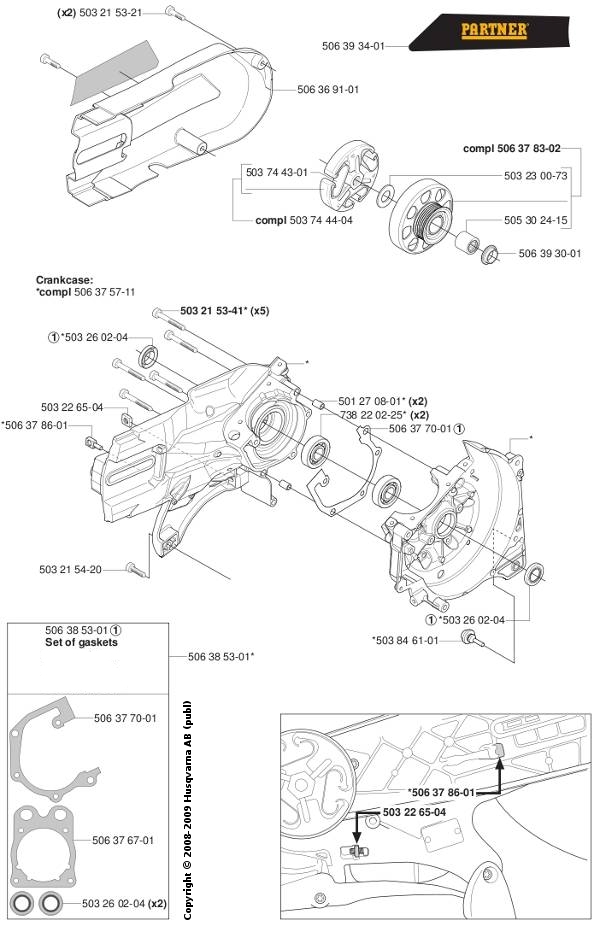

| Crank Case, Clutch and Rear Pulley | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 501 27 08-01 | 1 | Sleeve |
| 503 21 53-21 | 2 | Screw |
| 503 21 53-41 | 5 | Screw |
| 503 21 54-20 | 1 | Screw |
| 503 22 65-04 | 1 | Nut |
| 503 23 00-73 | 1 | Washer |
| 503 74 43-01 | 1 | Spring |
| 503 74 44-04 | 1 | Clutch |
| 503 84 61-01 | 1 | Buffer |
| 505 30 24-15 | 1 | Support Bushing |
| 506 36 91-01 | 1 | Guard |
| 506 37 30-01 | 1 | Washer |
| 506 37 57-11 | 1 | Crank Case (Complete) |
| 506 37 67-01 | 1 | Gasket |
| 506 37 70-01 | 1 | Gasket |
| 506 37 83-02 | 1 | Wheel |
| 506 37 86-01 | 1 | Loning |
| 506 39 34-01 | 1 | Decal |
Return to Top of Page

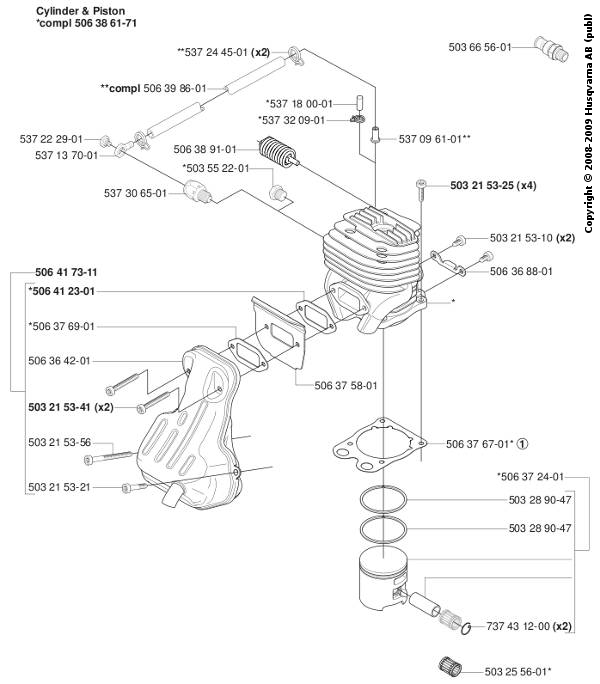

| Cylinder and Piston | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 503 21 53-10 | 4 | Screw |
| 503 21 53-21 | 1 | Screw |
| 503 21 53-25 | 4 | Screw |
| 503 21 53-41 | 2 | Screw |
| 503 21 53-56 | 1 | Screw |
| 503 25 56-01 | 1 | Needle Bearing |
Return to Top of Page

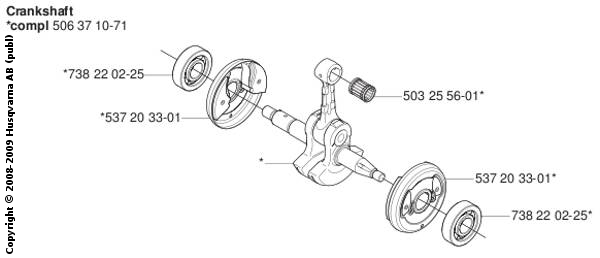

| Crankshaft | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 503 25 56-01 | 1 | Needle Bearing |
| 503 37 10-71 | 1 | Crankshaft |
| 537 20 33-01 | 2 | Cup |
| 738 22 02-25 | 1 | Ball Bearing |
Return to Top of Page

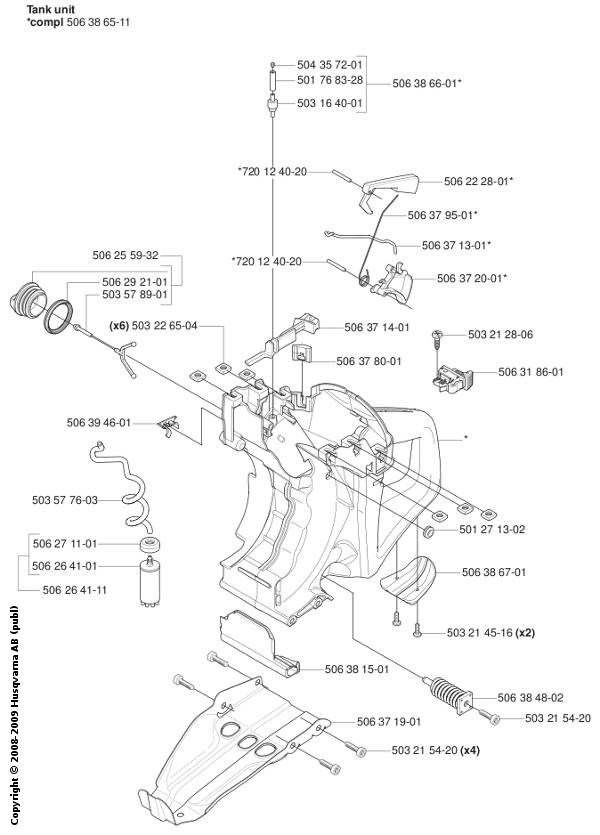

| Tank Unit | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 501 27 13-02 | 1 | Grommet |
| 501 76 83-28 | 1 | Hose |
| 503 16 40-01 | 1 | Valve |
| 503 21 28-06 | 1 | Screw |
| 503 21 45-16 | 2 | Screw |
| 503 22 65-04 | 6 | Nut |
| 503 57 76-03 | 1 | Hose |
| 503 57 89-01 | 1 | Holder |
| 504 35 72-01 | 1 | Fuel Filter |
| 506 22 28-01 | 1 | Throttle Lock |
| 506 25 59-32 | 1 | Tank Cap |
| 506 26 41-01 | 1 | Filter |
| 506 26 41-11 | 1 | Filter |
| 506 27 11-01 | 1 | Pendulum |
| 506 29 21-01 | 1 | Gasket |
| 506 31 86-01 | 1 | Stop Switch |
| 506 37 13-01 | 1 | Throttle Rod |
| 506 37 14-01 | 1 | Choke Control |
| 506 37 19-01 | 1 | Plate |
| 506 37 20-01 | 1 | Throttle Trigger |
| 506 37 80-01 | 1 | Grommet |
| 506 37 95-01 | 1 | Spring |
| 506 38 15-01 | 1 | Heat Shield |
| 506 38 48-02 | 1 | Insulator |
| 506 38 65-11 | 1 | Tank Unit (Complete) |
| 506 38 66-01 | 1 | Filter |
| 506 38 67-01 | 1 | Support |
| 506 39 46-01 | 1 | Tank Cover |
| 720 12 40-21 | 1 | Pin |
Return to Top of Page

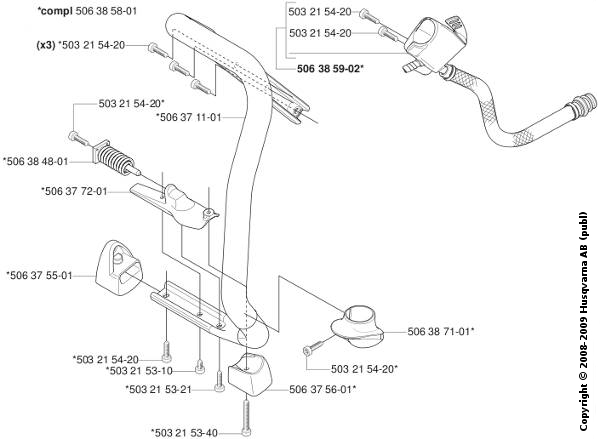

| Front Handle and Water Valve | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 503 21 53-10 | 1 | Screw |
| 503 21 53-21 | 1 | Screw |
| 503 21 53-40 | 1 | Screw |
| 503 21 54-20 | 2 | Screw |
| 506 37 11-01 | 1 | Handle |
| 506 37 55-01 | 1 | Support |
| 506 37 56-01 | 1 | Support |
| 506 37 72-01 | 1 | Bracket |
| 506 38 48-01 | 1 | Insulator |
| 506 38 58-01 | 1 | Handle |
| 506 38 59-02 | 1 | Valve (Complete) |
| 506 38 59-11 | 1 | Hose Coupling |
| 506 38 71-01 | 1 | Stop Handle |
Return to Top of Page

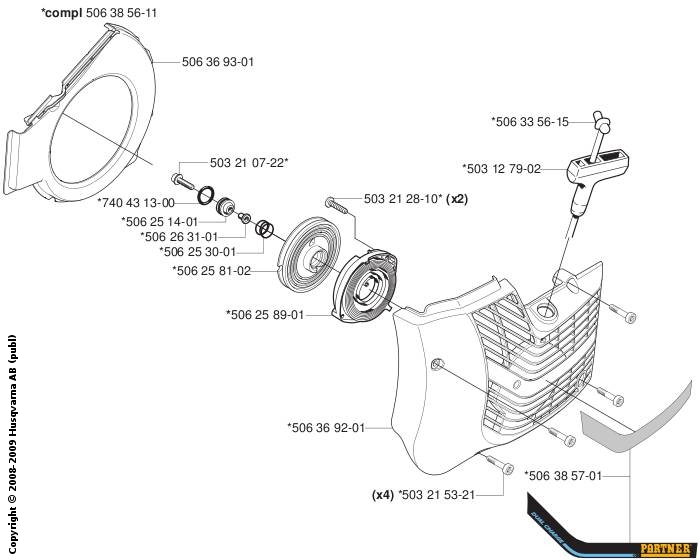

| Recoil Assembly | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 503 12 79-02 | 1 | Pull Grip |
| 503 21 07-22 | 1 | Screw |
| 503 21 28-10 | 2 | Screw |
| 506 25 14-01 | 1 | Washer |
| 506 25 30-01 | 1 | Spring |
| 506 25 81-02 | 1 | Starter Pulley |
| 506 25 89-02 | 1 | Return Spring |
| 506 26 31-01 | 1 | Sleeve |
| 506 33 56-15 | 1 | Starter Rope |
| 506 36 92-01 | 1 | Cover |
| 506 36 93-01 | 1 | Air Conductor |
| 506 38 56-11 | 1 | Recoil Assembly (Complete) |
| 506 38 57-01 | 1 | Label |
| 740 43 13-00 | 1 | 'O' Ring |
Return to Top of Page

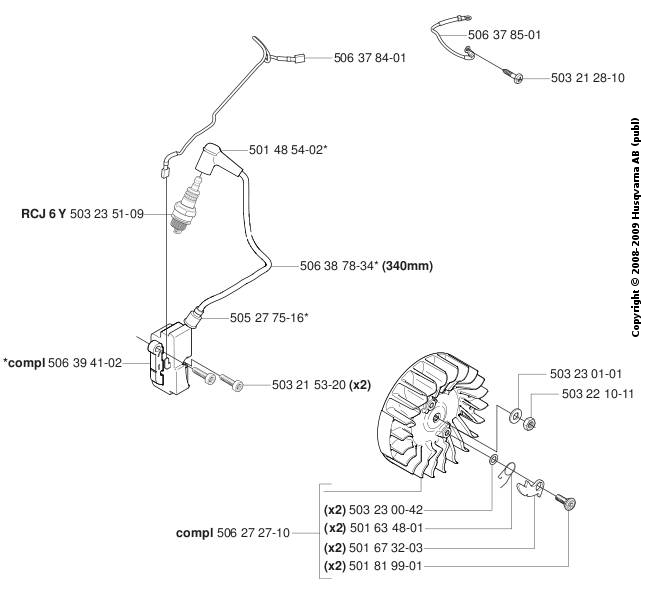

| Ignition and Flywheel Assembly | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 501 48 54-02 | 1 | Plug Cap |
| 501 53 16-01 | 1 | Cable |
| 501 63 48-01 | 2 | Spring |
| 501 67 32-03 | 2 | Pawl |
| 501 81 99-01 | 2 | Screw |
| 503 21 28-10 | 2 | Screw |
| 503 21 53-20 | 2 | Screw |
| 503 22 10-11 | 1 | Nut |
| 503 23 00-42 | 2 | Washer |
| 503 23 01-01 | 1 | Washer |
| 503 23 51-09 | 1 | Spark Plug - RCJ6Y |
| 506 37 84-01 | 1 | Cable |
| 506 37 85-01 | 1 | Cable |
| 506 39 41-02 | 1 | Ignition Module |
Return to Top of Page

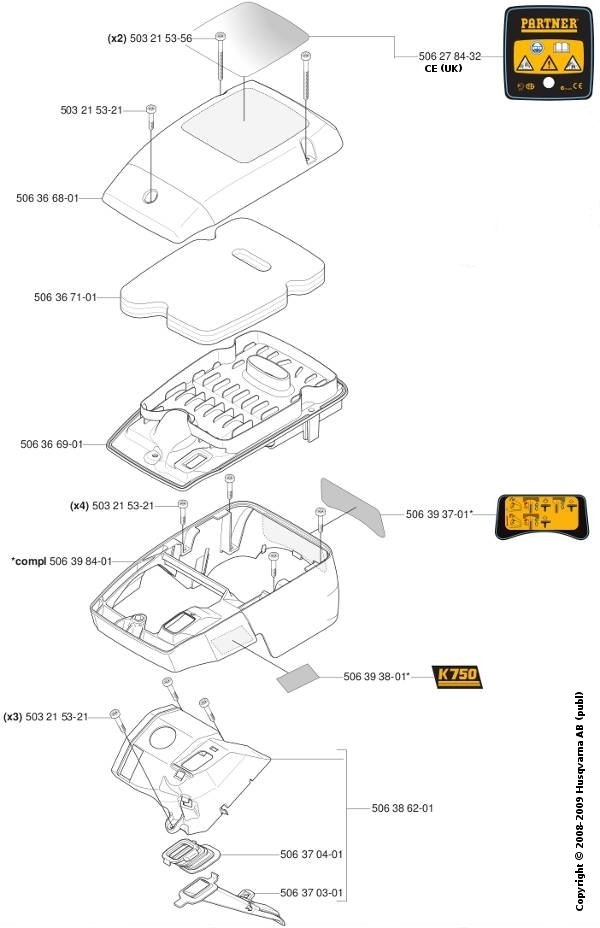

| Air Filter Assembly | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 503 21 53-21 | 7 | Screw |
| 503 21 53-56 | 2 | Screw |
| 506 27 84-32 | 1 | Label |
| 506 36 68-01 | 1 | Cover |
| 506 36 69-01 | 1 | Base |
| 506 36 71-01 | 1 | Air Filter |
| 506 37 03-01 | 1 | Jet |
| 506 37 04-01 | 1 | Bellows |
| 506 38 62-01 | 1 | Cover |
| 506 39 37-01 | 1 | Label |
| 506 39 38-01 | 1 | Label K750 |
| 506 39 84-01 | 1 | Air Filter Assembly (Complete) |
Return to Top of Page

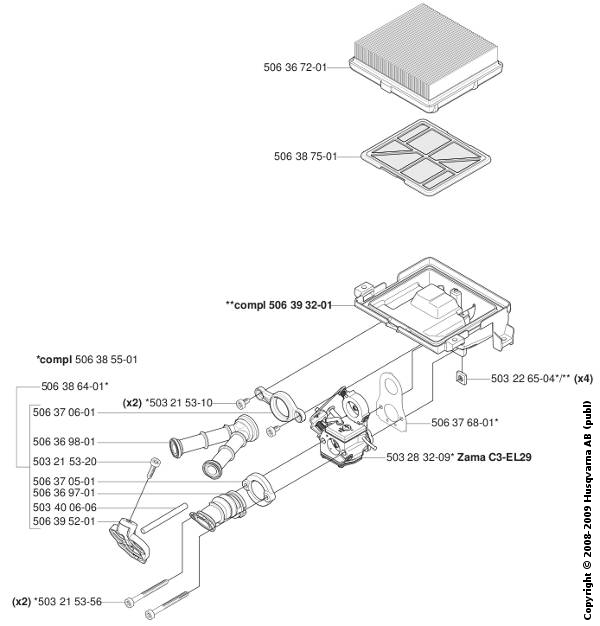

| Air Intake System | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 503 21 53-10 | 2 | Screw |
| 503 21 53-20 | 2 | Screw |
| 503 21 53-56 | 2 | Screw |
| 503 22 65-04 | 4 | Nut |
| 503 28 32-09 | 1 | Carburettor C3-EL29 |
| 503 40 06-06 | 1 | Hose |
| 506 36 97-01 | 1 | Pipe |
| 506 36 98-01 | 1 | Pipe |
| 506 37 05-01 | 1 | Flange |
| 506 37 06-01 | 1 | Flange |
| 506 37 68-01 | 1 | Gasket |
| 506 38 55-01 | 1 | Bracket |
| 506 38 64-01 | 1 | Pipe |
| 506 38 75-01 | 1 | Filter |
| 506 39 32-11 | 1 | Bracket (Complete) |
| 506 39 52-01 | 1 | Plate |
Return to Top of Page

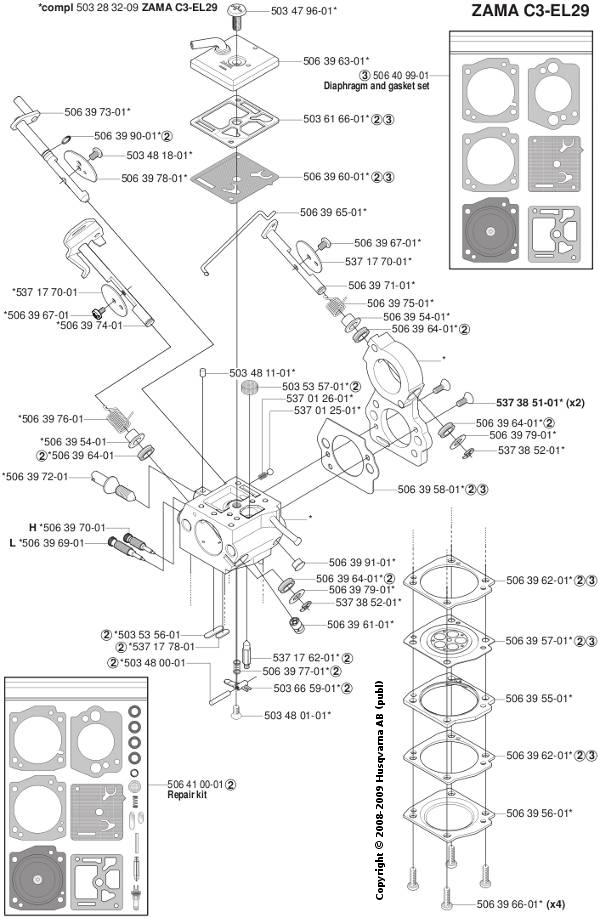

| Carburettor C3-EL29, Diaphragm and Gasket Set, Repair Kit | ||
|---|---|---|
 | ||
| OEM Part No | Qty Req | Description |
| 503 28 32-09 | 1 | Carburettor C3-EL29 |
| 503 47 96-01 | 1 | Screw |
| 503 48 00-01 | 1 | Pin Fulcrum |
| 503 48 01-01 | 1 | Screw |
| 503 48 11-01 | 1 | Plug |
| 503 48 18-01 | 1 | Screw |
| 503 53 56-01 | 1 | Plug |
| 503 53 57-01 | 1 | Strainer |
| 503 61 66-01 | 1 | Gasket |
| 503 66 59-01 | 1 | Lever |
| 506 39 54-01 | 1 | Collar |
| 506 39 55-01 | 1 | Cover Compensator |
| 506 39 56-01 | 1 | Metering Cover |
| 506 39 57-01 | 1 | Metal Diaphragm Assembly |
| 506 39 58-01 | 1 | Gasket |
| 506 39 60-01 | 1 | Pump Diaphragm |
| 506 39 61-01 | 1 | Nozzle Assembly Check Valve |
| 506 39 62-01 | 1 | Metering Gasket |
| 506 39 63-01 | 1 | Pump Cover Assembly |
| 506 39 64-01 | 4 | Sealing Ring |
| 506 39 65-01 | 1 | Linkage Shaft |
| 506 39 66-01 | 4 | Screw |
| 506 39 67-01 | 1 | Screw |
| 506 39 69-01 | 1 | Screw |
| 506 39 70-01 | 1 | Screw |
| 506 39 71-01 | 1 | Shaft Assembly |
| 506 39 72-01 | 1 | Throttle Adjusting Screw |
| 506 39 73-01 | 1 | Choke Shaft |
| 506 39 74-01 | 1 | Choke Shaft |
| 506 39 75-01 | 1 | Spring |
| 506 39 76-01 | 1 | Spring |
| 506 39 77-01 | 1 | Spring |
| 506 39 78-01 | 1 | Valve |
| 506 39 79-01 | 1 | Washer |
| 506 39 90-01 | 1 | 'O' Ring |
| 506 39 91-01 | 1 | Plug |
| 506 40 99-01 | 1 | Gasket and Diaphragm Kit |
| 506 41 00-01 | 1 | Repair Kit |
| 537 01 25-01 | 1 | Ball |
| 537 01 26-01 | 1 | Spring |
| 537 17 62-01 | 1 | Valve |
| 537 17 70-01 | 1 | Throttle Flap |
| 537 17 78-01 | 1 | Plug |
| 537 38 51-01 | 2 | Screw |
| 537 38 52-01 | 1 | Clip |
Return to Top of Page

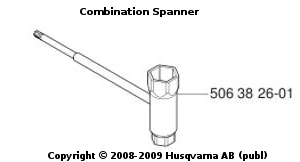

| Combinatation Spanner |
|---|
 |
| OEM Part No |
| 506 38 26-01 |
Return to Top of Page
