Partner K650 / K700 Parts List

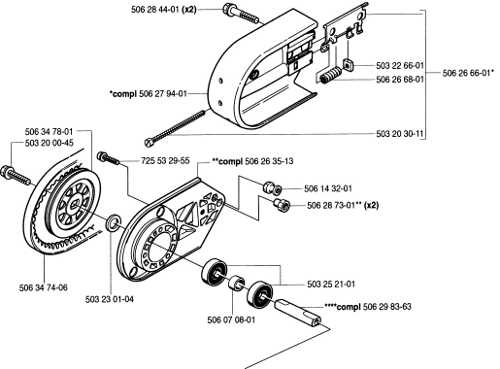

Tensioner
Tensioner
O.E.M. Part NoQuantityDescription
503 20 00-451Screw
503 20 30-111Screw
503 22 66-011Nut
503 23 01-041Washer 15x21
503 25 21-011Ball Bearing
506 07 08-011Spacer
506 14 32-011Catch
506 26 35-131Housing
506 26 66-011Tensioner
506 26 68-011Spring
506 27 94-011Cover
506 28 44-012Bolt
506 28 73-012Nut
506 29 83-631Shaft
506 34 78-011Pulley
506 43 74-061Belt
UK Part Numbers listed ONLY.
Return to Top of Page

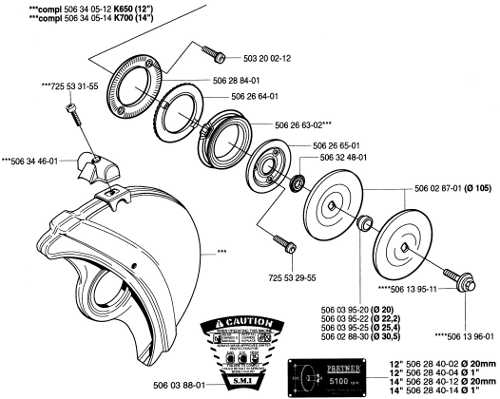

Guard
Guard
O.E.M. Part NoQuantityDescription
503 20 02-121Screw MC6SF 5x12
506 02 87-011Washer
506 02 88-301Bushing
506 03 88-011Warning Label
506 03 95-201Bushing
506 03 95-221Bushing
506 03 95-251Bushing
506 13 95-111Washer
506 13 96-011Screw
506 26 63-021Lining
506 26 64-011Ratchet Plate
506 26 65-011Flange
506 28 40-021Label
506 28 40-041Label
506 28 40-121Label
506 28 40-141Label
506 28 84-011Ratchet Plate
506 32 48-011Sleeve
506 34 05-121Guard 300mm (12")
506 34 05-141Guard 350mm (14")
506 34 46-011Handle
725 53 29-551Screw MC6S 5x16
725 53 31-551Screw MC6S 5x20
UK Part Numbers listed ONLY.
Return to Top of Page

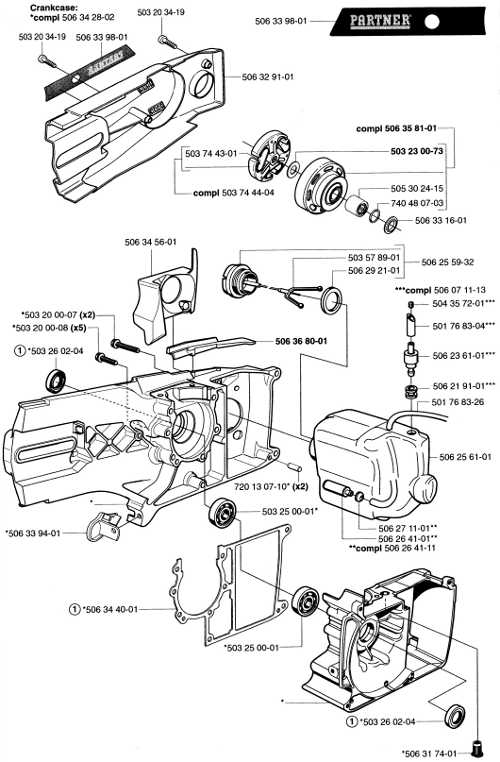

Crank Case
Crank Case
O.E.M. Part NoQuantityDescription
501 76 83-041Hose
501 76 83-261Hose, 245mm
503 20 00-072Screw MC6S 5x40
503 20 00-085Screw MC6S 5x30
503 20 34-191Screw
503 23 00-731Washer
503 25 00-011Ball Bearing
503 26 02-041Sealing Ring
503 57 89-011Holder
503 74 43-011Spring
503 74 44-041Clutch
504 35 72-011Fuel Filter
505 30 24-151Needle Bearing
506 07 11-131Hose
506 21 91-011Grommet
506 23 61-011Tank Vent
506 25 59-321Tank Cap
506 25 61-011Tank Unit
506 26 41-011Fuel Filter
506 26 41-111Fuel Filter Complete
506 27 11-011Fuel Filter Weight
506 29 21-011Gasket
506 31 74-011Bushing
506 32 91-011Cutting Arm
506 33 16-011Washer
506 33 94-011Cap
506 33 98-011Decal
506 34 28-021Crank Case Complete
506 34 40-011Gasket
506 34 56-011Protector
506 35 81-011Wheel Complete
506 36 80-011Spacer
720 13 07-102Pin
740 48 07-031'O' Ring
UK Part Numbers listed ONLY.
Return to Top of Page

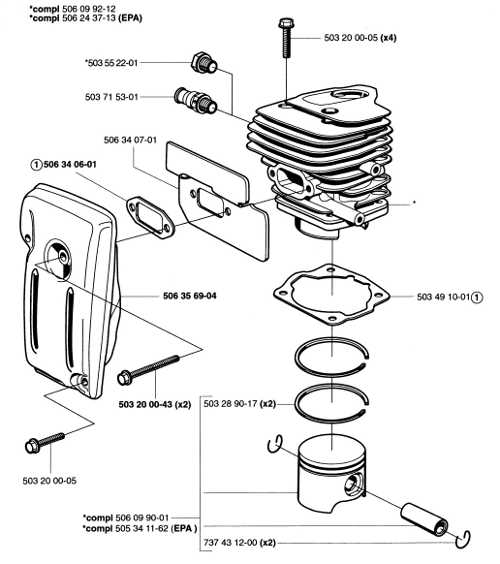

Cylinder and Piston
Cylinder and Piston
O.E.M. Part NoQuantityDescription
503 20 00-054Screw MC6S 5x25
503 20 00-432Screw
503 28 90-172Piston Ring
503 49 10-011Gasket
503 55 22-011Plug
503 71 53-011Valve Decompression
506 09 90-011Piston Diameter 50mm Compete
506 09 92-121Cylinder Complete
506 34 06-011Gasket
506 34 07-011Deflector
506 35 69-041Muffler
737 43 12-002Retaining Ring
UK Part Numbers listed ONLY.
Return to Top of Page

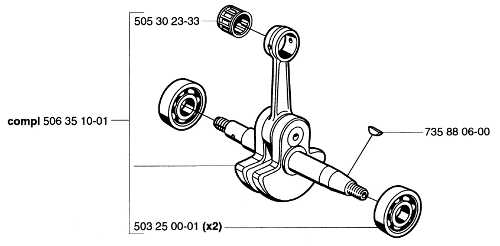

Crankshaft
Crankshaft
O.E.M. Part NoQuantityDescription
503 25 00-012Ball Bearing
505 30 23-331Needle Bearing
505 35 10-011Crankshaft
735 88 06-001Woodruff Key
UK Part Numbers listed ONLY.
Return to Top of Page

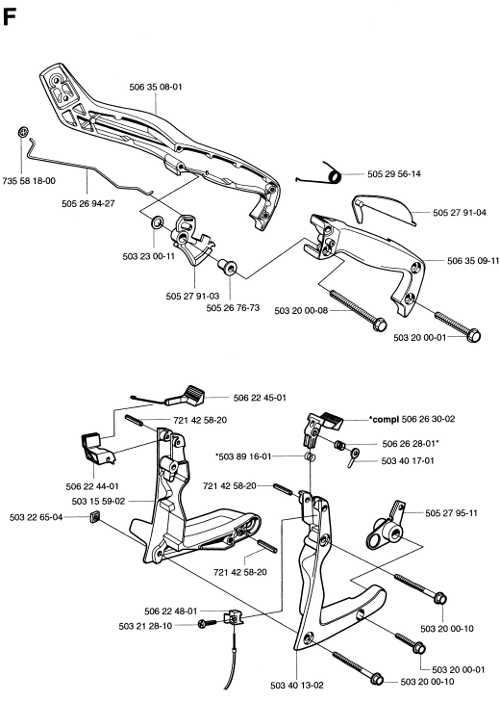

Throttle Handle Assembly
Throttle Handle Assembly
O.E.M. Part NoQuantityDescription
503 15 59-021Bracket Right
503 20 00-011Screw M6SF 5x20
503 20 00-081Screw M6SF 5x30
503 20 00-101Screw M6SF 5x55
503 21 28-101Screw
503 22 65-041Nut
503 23 00-111Washer
503 40 13-021Bracket Left
503 40 17-011Contact Spring
503 89 16-011Spring
505 22 44-011Guide
505 22 45-011Choke Control
505 22 48-011Holder
505 26 28-011Spring
505 26 30-021Knob
505 26 76-731Spacer
505 26 94-271Throttle Rod
505 27 91-031Throttle Control
505 27 91-041Throttle Catch
505 27 95-111Absorber
505 29 56-141Spring
505 35 08-011Handle Right
505 35 09-111Handle Left
721 42 58-201Spring Pin 4x24
735 58 18-001Lock Washer
UK Part Numbers listed ONLY.
Return to Top of Page

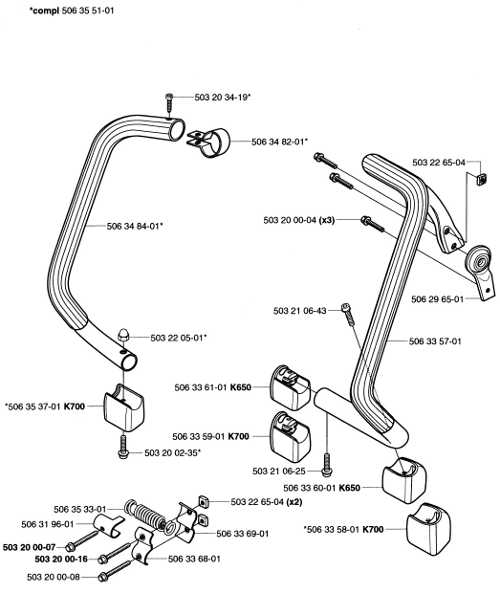

Handle Wrap Assembly
Handle Wrap Assembly
O.E.M. Part NoQuantityDescription
503 20 00-043Screw M6SF 5x16
503 20 00-071Screw M6SF 5x40
503 20 00-081Screw M6SF 5x30
503 20 00-161Screw M6SF 5x28
503 20 02-351Screw MC6SF 5x35
503 20 34-191Screw
503 21 06-251Screw
503 21 06-431Screw
503 22 05-011Nut
503 22 65-042Nut
506 29 65-011Absorber
506 31 96-011Holder
506 33 57-011Handle
506 33 58-011Support
506 33 59-011Support
506 33 60-011Support
506 33 61-011Support
506 33 68-011Spring Mount
506 33 69-011Spring Mount
506 34 82-011Clamp
506 34 84-011Handle
506 35 33-011Absorber
506 35 37-011Support
506 35 51-011Handle Wrap Complete
UK Part Numbers listed ONLY.
Return to Top of Page

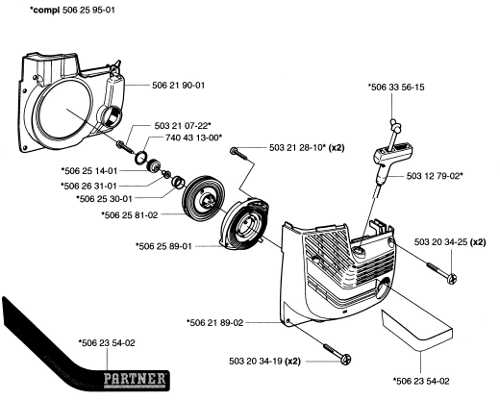

Recoil Assembly
Recoil Assembly
O.E.M. Part NoQuantityDescription
503 12 79-021Starter Handle
503 20 34-192Screw
503 20 34-252Screw
503 21 07-221Screw
503 21 28-102Screw
506 21 89-021Starter Housing
506 21 90-011Air Conductor
506 23 54-021Decal
506 25 14-011Washer
506 25 30-011Spring
506 25 81-021Starter Pulley
506 25 89-011Return Spring
506 25 95-011Starter Device
506 26 31-011Sleeve
506 33 56-151Starter Rope
740 43 13-001'O' Ring
UK Part Numbers listed ONLY.
Return to Top of Page

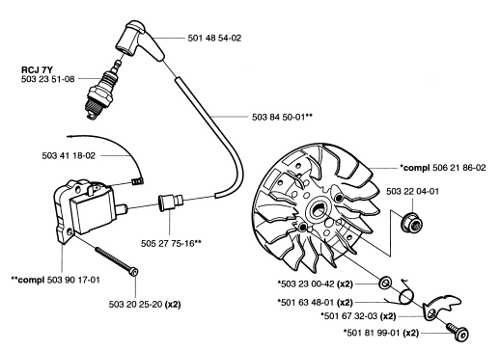

Ignition and Flywheel Assembly
Ignition and Flywheel Assembly
O.E.M. Part NoQuantityDescription
501 48 54-021Spark Plug Connector Kit
501 63 48-012Spring
501 67 32-032Pawl
501 81 99-012Screw M5x14
503 20 25-202Screw
503 22 04-011Lock Nut
503 23 00-422Washer
503 23 51-081Spark Plug - RCJ7Y
503 41 18-021Cable
503 84 50-011Cable
503 90 17-011Ignition Module
505 27 75-151Insulating Cap
506 21 86-021Flywheel Complete
UK Part Numbers listed ONLY.
Return to Top of Page

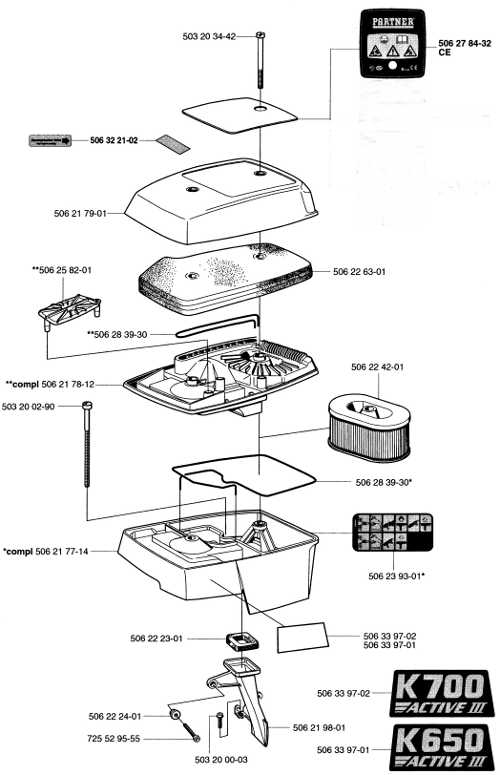

Air Filter Assembly
Air Filter Assembly
O.E.M. Part NoQuantityDescription
503 20 00-031Screw M6SF 5x12
503 20 02-901Screw
503 20 34-421Screw
506 21 77-141Cylinder Cover
506 21 78-121Filter Holder
506 21 79-011Filter Cover
506 21 98-011Air Jet
506 22 23-011Seal
506 22 24-011Seal
506 22 42-011Air Filter
506 22 63-011Filter
506 23 93-011Decal
506 25 82-011Guard
506 27 84-321Decal
506 28 39-301Seal
506 32 21-021Decal
506 33 97-011Decal
506 33 97-021Decal
725 52 95-551Screw MC6S 4x20
UK Part Numbers listed ONLY.
Return to Top of Page

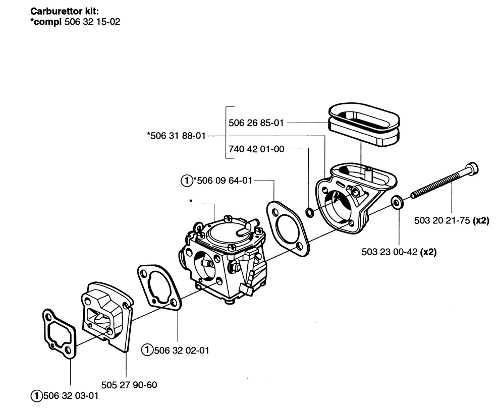

Carburettor Kit
Carburettor Kit
O.E.M. Part NoQuantityDescription
503 20 21-752Screw
503 23 00-422Washer
505 27 90-601Insulating Flange
506 09 64-011Gasket
506 26 85-011Rubber Seal
506 31 88-011Intake Pipe
506 32 02-011Gasket
506 32 03-011Gasket
506 32 15-021Carburettor Coupling
740 42 01-001'O' Ring
UK Part Numbers listed ONLY.
Return to Top of Page

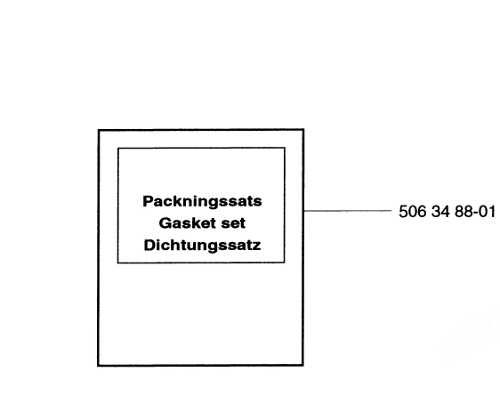

Gasket Set
Gasket Set
O.E.M. Part NoQuantityDescription
506 34 88-011Gasket Set
UK Part Numbers listed ONLY.
Return to Top of Page

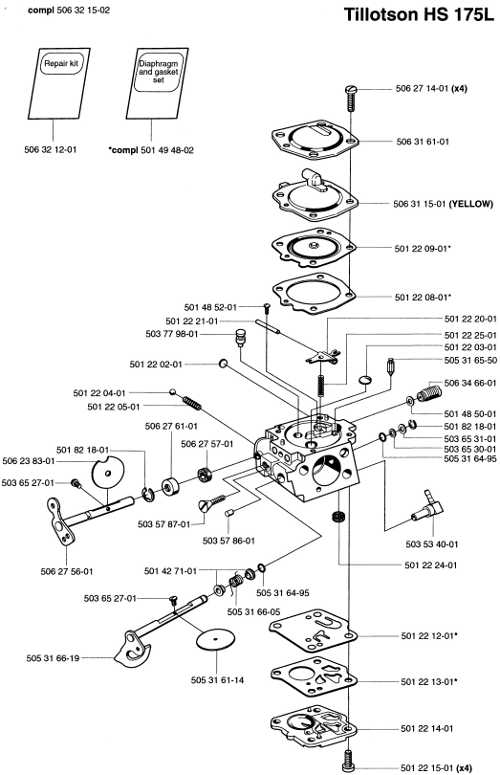

Carburettor HS 175L
Carburettor HS 175L
O.E.M. Part NoQuantityDescription
501 22 02-011Plug
501 22 03-011Plug
501 22 04-011Ball
501 22 05-011Spring
501 22 08-011Gasket
501 22 09-011Diaphragm
501 22 12-011Fuel Pump Diaphragm
501 22 13-011Gasket, Pump Side
501 22 14-011Cap
501 22 15-014Screw
501 22 20-011Lever
501 22 21-011Shaft
501 22 24-011Filter
501 22 25-011Spring
501 42 71-011Bushing
501 48 50-011Gasket
501 48 52-011Screw
501 49 48-021Diaphragm / Gasket Set
501 82 18-011Retaining Ring
503 53 40-011Nipple
503 57 86-011Ball
503 57 87-011Screw
503 65 27-011Screw
503 65 30-011Washer
503 65 31-011Washer
503 77 98-011Valve
505 31 61-141Shutter
505 31 64-951Sealing Ring
505 31 65-501Needle
505 31 66-051Spring
505 31 66-191Throttle Shaft
506 23 83-011Choke Flap
506 27 14-014Screw
506 27 56-011Choke Shaft
506 27 57-011Felt Seal
506 27 61-011Cup
506 31 15-011Insert
506 31 61-011Cover
506 32 12-011Repair Kit
506 32 15-021Carburettor HS-175L Complete
506 34 66-011Governor
UK Part Numbers listed ONLY.
Return to Top of Page
