Flexible Rubber Mountings

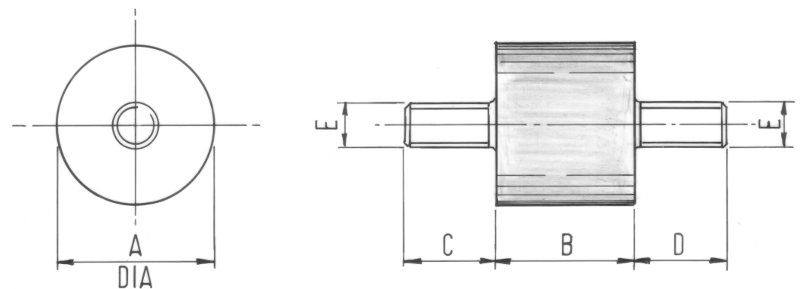

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize

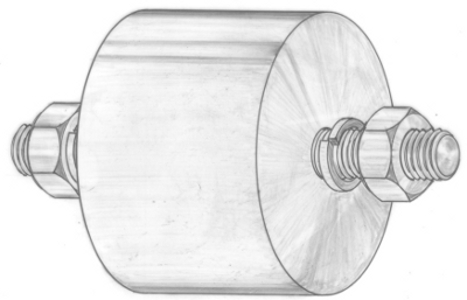

FRM1(A) 22mm (B) 15mm (C) 16mm (D) 16mm (E) 6mm
Flexible Rubber Mounting
Return to Top of Page

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM2(A) 32mm (B) 25mm (C) 20mm (D) 20mm (E) 8mm
Flexible Rubber Mounting
Return to Top of Page

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM3(A) 40mm (B) 30mm (C) 23mm (D) 23mm (E) 8mm
Flexible Rubber Mounting
Return to Top of Page

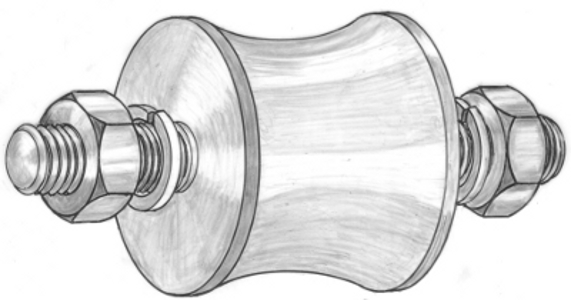

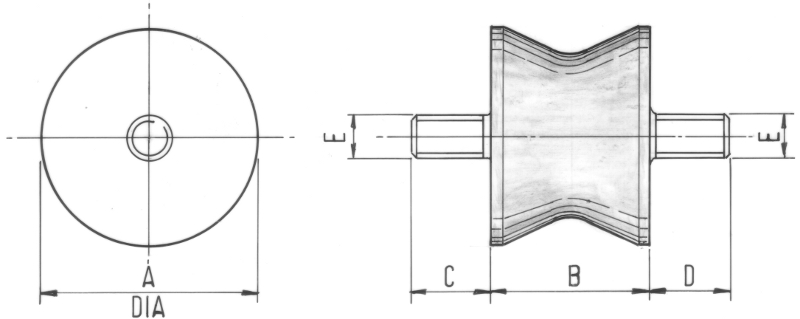

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM4(A) 38mm (B) 38mm (C) 25mm (D) 25mm (E) 10mm
Flexible Rubber Mounting
Return to Top of Page

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM5(A) 55mm (B) 36mm (C) 25mm (D) 25mm (E) 10mm
Flexible Rubber Mounting
Return to Top of Page

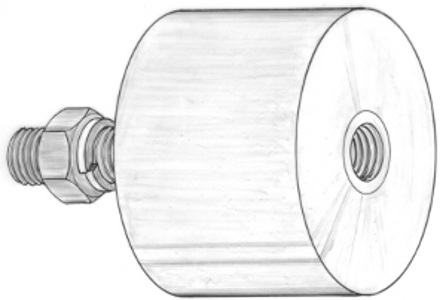

Flexible Rubber Mounting

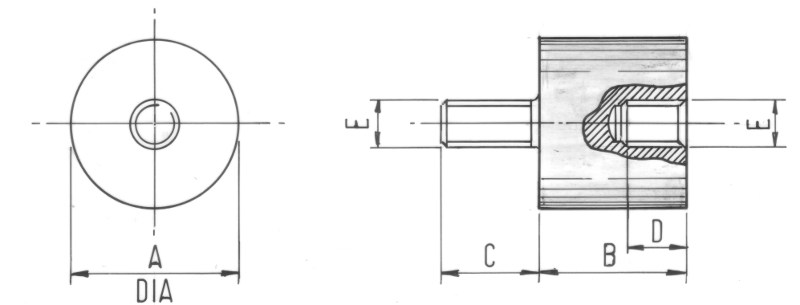

Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM6(A) 32mm (B) 25mm (C) 20mm (D) 9mm (E) 8mm
Flexible Rubber Mounting
Return to Top of Page

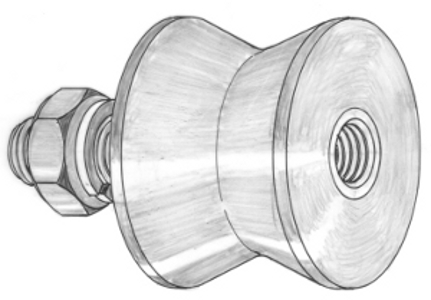

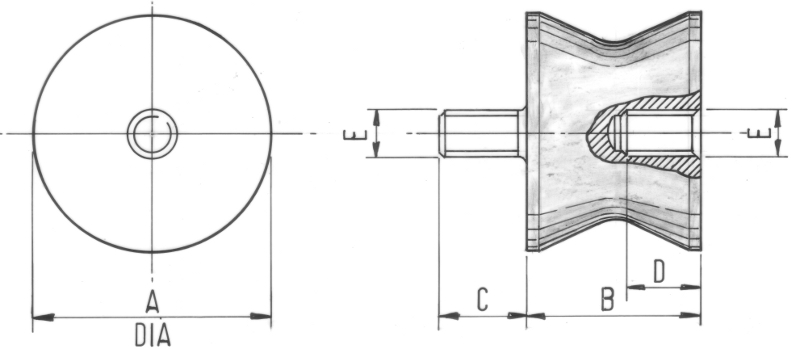

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM7(A) 55mm (B) 36mm (C) 25mm (D) 10mm (E) 10mm
Flexible Rubber Mounting
Return to Top of Page

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM8(A) 72mm (B) 33mm (C) 40mm (D) 40mm (E) 12mm
Flexible Rubber Mounting
Return to Top of Page

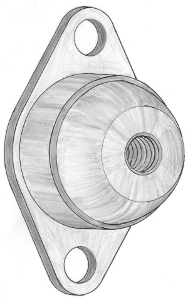

Flexible Rubber Mounting

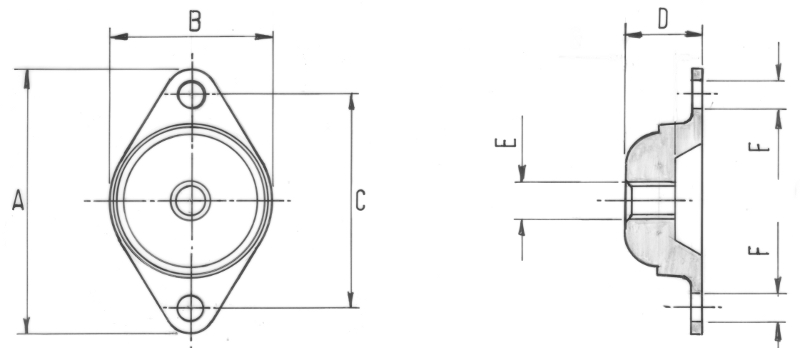

Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM9(A) 76mm (B) 47mm (C) 62mm (D) 21mm (E) 10mm (F) 8mm
Flexible Rubber Mounting
Return to Top of Page

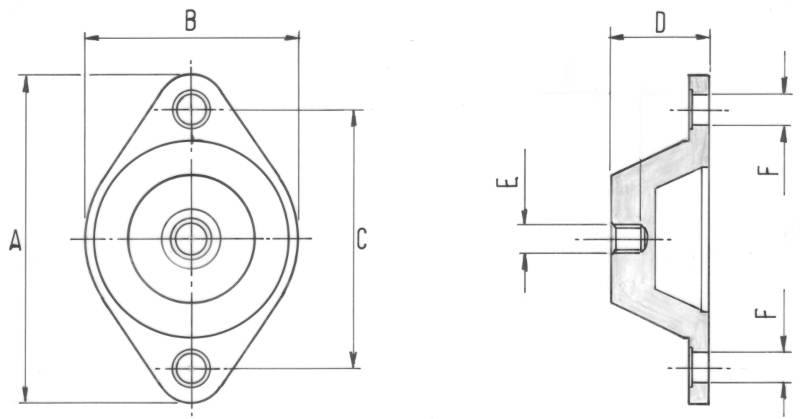

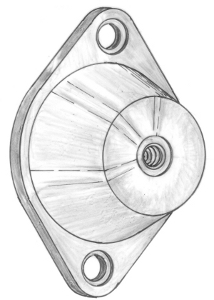

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM10(A) 92mm (B) 60mm (C) 74mm (D) 28mm (E) 8mm (F) 8mm
Flexible Rubber Mounting
Return to Top of Page

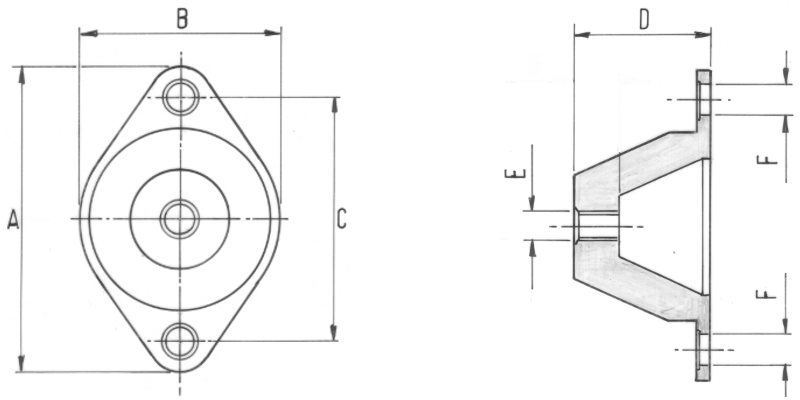

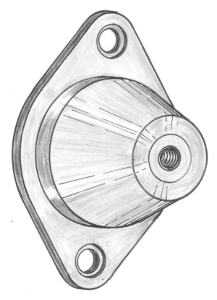

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM11(A) 92mm (B) 60mm (C) 74mm (D) 38mm (E) 8mm (F) 8mm
Flexible Rubber Mounting
Return to Top of Page

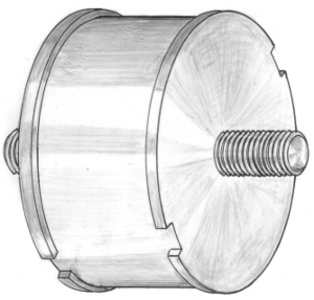

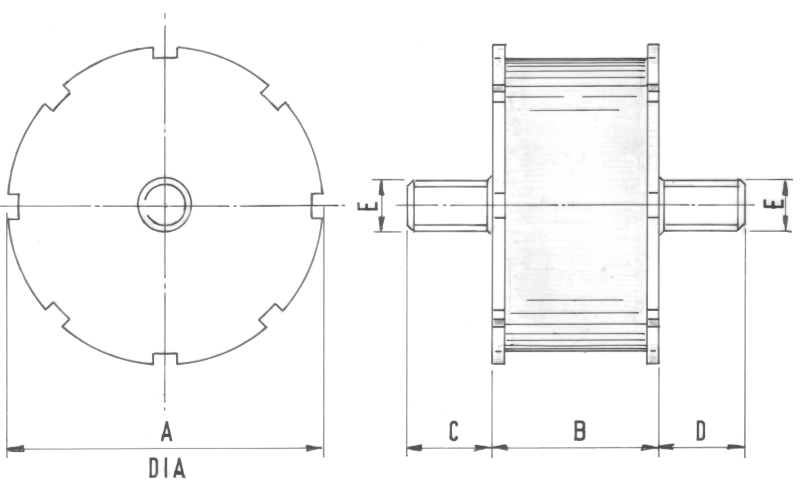

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM12Bomag 120/130 etc.(A) 105mm (B) 55mm (C) 25mm (D) 25mm (E) 16mm
Flexible Rubber Mounting
Return to Top of Page

Flexible Rubber Mounting

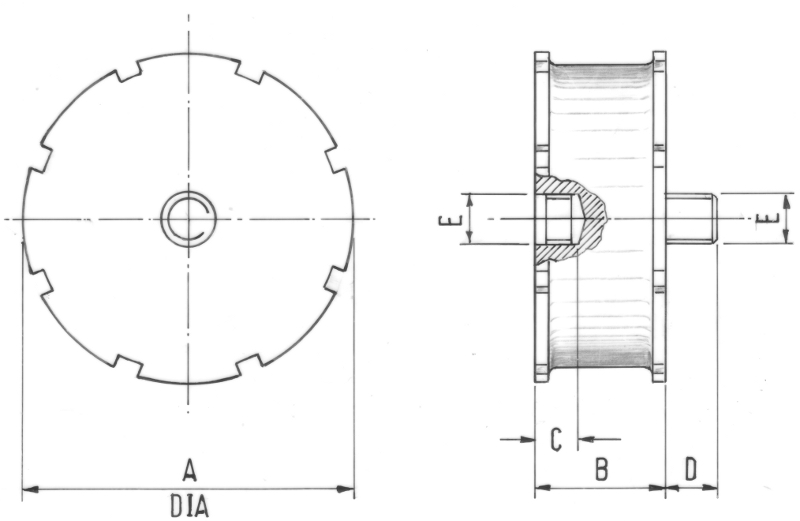

Flexible Rubber Mounting
MGJ Part NoSuitable ForSize

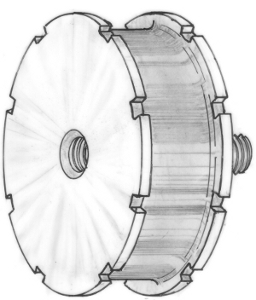

FRM13(A) 105mm (B) 42mm (C) 16mm (D) 17mm (E) 16mm
Flexible Rubber Mounting
Return to Top of Page

Flexible Rubber Mounting
Flexible Rubber Mounting
MGJ Part NoSuitable ForSize
FRM14(A) 40mm (B) 30mm (C) 20mm (D) 9mm (E) 8mm
Flexible Rubber Mounting
Return to Top of Page
